pbsControl is professional SCADA solution provider .pbsSCADA solution is based on pbsHMI as master SCADA Platform , pbsSoftLogic as RTU Programming environment and DNP3/IEC870-5/Modbus/GSP/OPC UA protocols .

pbsscada



- pbsSoftLogic : Open RTU/PLC Programming Environment ( Function Block Programming and Lua Language) for Embedded linux/QNX Controller with Supported Modbus Master/Slave , DNP3 Slave , IEC870-5-101/104 Slave ,IEC870-5-103 master GSP Client ,OPC UA Server , SQLite and Siemens S7 Communication Protocols . Download Free Development Environment V2.0RC14. Download user manual

- pbsHMI : HMI/SCADA Software Platform Based on .Net Technology .

- GSP Protocol : GSP Master OPC Server User Manual ,Download GSP Master OPC Server

- IEC 60870-5-104 Master OPC Server V1.6 : Download OPC Server , Download User Manual

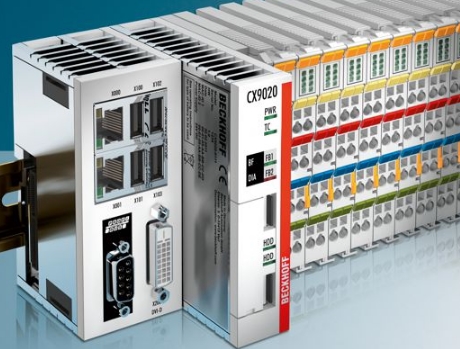

- DNP3 Slave Driver for beckhoff CX Series Controller .

Download DNP3 Slave Driver Configurator utility .

Download CX9000/8000 DNP3 Slave Driver Runtime ,Download CX1000 DNP3 Slave Driver Runtime ,Win32 DNP3 Slave Driver Runtime ,DNP3 Slave Driver manual , DNP3 slave device profile ( V1.3 3/11/ 2014)

- E+H FieldGate FXA520 OPC Server , Download User Manual , Download OPC Server

PSLE-ENG-SRC : C# Source code of pbsSoftLogic Engineering Platform . Function Block Environment , Lua Editor , OffLine Simulator

PSLE-RT-SRC : ANSI C Source code for pbsSoftLogic Runtime kernel for Linux , QNX , Win32

PSLE-DNP3-SRC : ANSI C Source code for DNP3 Slave Driver for pbsSoftLogic Runtime kernel for Linux , QNX and Win32

PSLE-IEC101/104-SRC : ANSI C Source code for IEC101-104 Slave Driver for pbsSoftLogic Runtime kernel for Linux , QNX and Win32

PSLE-MODBUS-SRC : ANSI C Source code for Modbus TCP/RTU Master/Slave Driver for pbsSoftLogic Runtime kernel for Linux , QNX and Win32

PSLE-OPCUA-SRC : ANSI C/ C++ Source code for OPC UA Server Driver for pbsSoftLogic Runtime kernel for Linux , QNX and Win32

PSLE-SQLITE-SRC : ANSI C/ C++ Source code for SQLite Driver for pbsSoftLogic with Automatic Data Synchronization with MS SQL Server for Linux , QNX and Win32

PSLE-GSP-SRC : ANSI C Source code for GSP Client Driver for pbsSoftLogic Runtime kernel for Linux , QNX and Win32

PSLE-S7-SRC : ANSI C Source code for Siemens S7 Client Driver for pbsSoftLogic Runtime kernel for Linux , QNX and Win32

OPC-SRV-DNP3-Slave-SRC : DNP3 Slave OPC DA Classic Server C# Source code for win32

OPC-SRV-IEC101/104-Slave-SRC : IEC101/104 Slave OPC DA Classic Server C# Source code for win32

OPC-SRV-GSP-SRV-SRC : GSP Server OPC DA Classic Server C# Source code for win32

BECK-DNP3-Slave-SRC : C Source code for DNP3 Slave Driver for Beckhoff CX Series Controller for WinCE and Win32 , C# Source code of Configurator Software



  • MAPCSR
  • AMS-R4000RTU
  • pbs2008RTU
  • AMS-R4000GW
  • SGR-2000

Modular RTU : MAPCSR is Modular RTU from MECO and pbsControl companies . The Hardware is hart of MECO DCS Platform MAPCS for Power Plants which is Powered by pbsSoftLogic Runtime Kernel . MAPCSR Platform Can be used in Many differnet Plants Like SCADA systems for Oil & Gas Pipe Lines , Water and waste Water Pump Stations and Control Systems for Differnet Utility Plants . MAPCSR can be used As RTU or as PLC for Controlling Plants . Digital IO Modules , Analog IO Modules

Target Market for MAPCSR is Oil & Gas Pipe Line SCADA projects , Utility Plants Control System for Power plants and refineries , Control System for Water and Waste Water Treatment plants .

MAPCSR Specification : Datasheet

  • Modular RTU based on Backplane Technology
  • Hot Swap IO Modules with Diagnostic Information
  • Power and Communication Redundancy ( CPU Redundancy is under development )
  • Maximum 64 IO Modules are supported with One CPU
  • 32 Channels Digital Modules ( DI , DO , CNT)
  • 8 Channels Analog Modules ( AI , AO , TC , RTD )
  • Embedded Linux OS
  • 1 GHz Cortex CPU with 1 GB RAM , 8 GB Flash
  • 1xRS232 Port , 1xRS485 Port , 1xEthernet Port
  • Modbus TCP/RTU Master /Slave , DNP3 Slave , IEC101/104 Slave , IEC101 Master , OPC UA Server , GSP Client , SQLite for Local Data Archiving and S7-Connect Drivers are supported
  • IEC1131-3 Based Programming Language with Standard FB and Lua Scripting for User Defined FB





Modular RTU : AMS-R4000RTU is Modular RTU from AMS and pbsControl companies . Hardware is designed by AMS ( Alborz Micro Systems) and it is powered by pbsSoftLogic runtime Kernel by pbsControl.AMS-R4000RTU Introduction

Target Market for AMS-R4000RTU is Power SCADA projects .

Specifications :

  • Modular RTU
  • 1 GHz CPU ARM Cortex A8 with 512 MB RAM , 4 GB Falsh
  • 2xEthernet Ports
  • 2xRS232 Full Modem Ports
  • 2xRS485 Ports
  • Integrated 3G/4G Modem
  • Supports Differnet types of IO Modules
  • Supports 3 Phase Power Measurment Module
  • 1 MSec Time Lable resolution for Digital input Modules
  • -30 to +70 deg Operation
  • Embedded Debian Linux OS
  • Supports OpenVPN /IPSec Client
  • Supports IP Forwarding , Filtering and FireWall
  • Supports DNP3 Slave Level 3 , IEC101/104 Slave , IEC101 Master , Modbus RTU/TCP Master /Slave ,OPC UA Server , GSP Client , SQLite Local Data Logging With Automatic Data Synchronization with MS SQL Server at Control Room and S7-Connect Client Drivers .
  • pbsSoftLogic is used for IEC1131-3 Programming based on Function Block and Lua Scripting .
  • Supports WebServer for Configuration of Network , OpenVPN , IPSec , Firewall and IP Forwarding functionalites .







Compact RTU : pbs2008RTU is designed for distribution SCADA for Gas , Electricity and Water Systems. pbs2008RTU is a common product between Alborz Micro System (AMS) and pbsControl companies . Hardware is designed and manufractuered by AMS and it is powered by pbsSoftLogic runtime Kernel by pbsControl.

Target Market for pbs2008RTU is Gas , Water and Electricity Distribution SCADA projects .

pbs2008RTU Specification : Datasheet

  • Arm A8 Cortex 1 Ghz CPU
  • Low Power RTU 2~2.5 W
  • 512 MB RAM , 4GB Internal Flash , 1xSD Card Slot upto 32 GB Capacity
  • 2xRS232 , 1xRS485,1xEthernet Ports
  • 8xDI ( 4 CH Counter 1KHz ) , 4xAI( 12 Bit Resolution),4xDO ( Relay ) , 2x Temperature , 1xAO ( Optional)
  • Optional 3G/4G Integrated Modem/Router
  • -30 to +70 deg Operation
  • Embedded Debian Linux with OpenVPN , IPsec , IPTables , IP Routing and DHCP Server
  • Can be configured as 3G/4G Router at master SCADA
  • Optimized for SCADA projects based on Mobile Network
  • Modbus RTU/TCP Master/Slave , DNP3 Slave , IEC101/104 Slave , IEC103 Master , IEC101 Master , DNP3 Master ,OPC UA Server ,GSP Client , S7-Connect Client , SQLite for Local Data Archiving and Direct MS SQL Server client Drivers are supported .
  • IEC1131-3 Standard Function Block proramming , Lua Scripting for User Defined FB , Logic Monitoring ,Offline Simulation and Remote Downloading of Logic Through TCP/IP



Order codes :

pbs2008RTU : 8 DI , 4DO , 4AI , 2Temp , 2RS232 , 1RS485 , 1Ethernet , 512 MBRAM , 4 GB Flash , 1GHz CPU

pbs2008RTU-3G : 8 DI , 4DO , 4AI , 2Temp , 2RS232 , 1RS485 , 1Ethernet , 512 MBRAM , 4 GB Flash , 1GHz CPU with Integrated 3G Modem /Router

pbs2008RTU-4G : 8 DI , 4DO , 4AI , 2Temp , 2RS232 , 1RS485 , 1Ethernet , 512 MBRAM , 4 GB Flash , 1GHz CPU with Integrated 4G Modem /Router

Options :

pbs2008RTU-1AO : 1 Channel AO can be integrated to pbs2008RTU/3G/4G Modules

pbs2008-TempSensor : 2 External Temprature sensor for direct connection to pbs2008RTU/3G/4G . -60 to +120 deg Range

pbs2008RIO is Standard ModbusRTU Remote IO Module for expanding IO for any type of Control Systems

pbs2008RIO Specifications : User Manual ,Datasheet



Intelligent 3G Router Gateway : AMS-R4000GW is designed for best performance for SCADA systems based on Mobile Network . You can easily upgrade old SCADA systems to latest technology without replacing old RTUs . AMS-R4000GW is an intelligent High performance 3G Modem /Router/Gateway Module . Datasheet

Technical Specifications :

- ARM Cortex CPU , 1Ghz , 512 MB RAM , 4 GB Flash

-2xRS485 Ports

-2xRS232 Full Ports

-2xEthernet ports

- Integrated 3G Modem

-IP Routing /Filtering , OpenVPN , IPCSec supported

-Modbus Master /Slave TCP/RTU , DNP3 Slave , IEC101 Master , IEC101/104 Slave , S7-Connect Client , OPC UA Server , SQLite and GSP Client Drivers supported











SGR-2000 : Low Power GSM RTU .

SGR-2000 Specifications : Datasheet

Features
-Ultra Low Power Consumption, Maximum 0.4w in normal mode
-RS232/RS485 Interfaces, 2 x RS232, 1 x RS485
-SMS, GPRS & APN supported, Quad-Bands are supported
-Modbus Master, IFLAG Master and NIGC BCON Slave
-OPC DA Remote Interface with SQL sync mechanism
-Wide Operating Temperature Range: -30 to 70
-IP20, Aluminum housing, Standard Rail-Mount
-Wide Input Power Supply, 10 to 30, Fully Protected
-IEC61000-4-4 (Burst) , IEC61000-4-5 (Surge)



















pbsControl released MAPCSR Modular PLC/RTU Platform ( July 2017)

pbsControl released pbs2008RTU ( July 2016)

pbsControl released SQLite Driver for pbsSoftLogic with Automatic synchronization with MS SQL Server at Master Contorl Room ( 24/5/2016) Read Application Story

pbsControl released OPC UA Server Driver for ADAM-3600 and pbs2008RTU . ( 18/4/2016)

pbsControl released V1.0 of GSP Communication protocol Specification.(29/12/2015)

pbsControl released V1.0 of E+H Fieldgate FXA520 OPC Server . ( 13 /3/2015)

pbsControl released V1.5 of IEC870-5-104 Master OPC Server . ( 1 /1/2015)

pbsControl released V1.3 of DNP3 Slave driver for Beckhoff Controller . ( 3 /11/2014)

pbsSoftLogic Version 1.66 is released with S7connect Communication protocol for interfacing with Siemens Control systems .(28/10/2014)

pbsSoftLogic Version 1.65 is released with IEC870-5-103 master protocol , pbsSDK , new ADAM3600 RTU and

UNO1110 Target Runtime.(10/10/2014)

We are offering following Training Courses with workshop :

- Course #1 : Basic SCADA Solutions , 3 days , from 9:00 to 15:00

- Basic concepts of SCADA systems

- pbsSoftLogic Concepts , Function Block Programming and Logic offline simulation for pbs2008RTU

- Modbus, DNP3 and IEC101/104 Protocols Concepts , Tools and Configuration in pbsSoftLogic

- OPC Classic and OPC UA Concepts , Tools and Configuration in pbsSoftLogic

- Data Archiving in RTU by SQLite , Tools and Configuration in pbsSoftLogic

- SCADA Systems based on Mobile network and GSP Protocol Concepts , Tools and Configuration in pbsSoftLogic

- Course #2 : Advanced SCADA Solutions , 3 days , from 9:00 to 15:00

- pbsSoftLogic RunTime Kernel Structure for Linux , win32 , WinCE and QNX Operating systems

- Lua Scripting Concepts and User Defined Function Block development with Lua for pbsSoftLogic

- MAPCSR hardware and Software Concepts , Configuration and Programming

- AMS-R4000RTU hardware and Software Concepts , Configuration and Programming

- Advanced Function Block Programming for Developing , simulation and Warm Logic Updating for a Real Plant.

- Course #3 : pbsHMI SCADA Platform, 3 days , from 9:00 to 15:00

- pbsHMI Concepts

- Configuration of Modbus , DNP3 , IEC104 , S7-Connect , OPC UA and OPC Classic Drivers in pbsHMI

- Developing Graphic Pages , Providing Dynamics and Events

- Graphic symbol Concepts and defining user defined symbols .

- C# Scripting in pbsHMI

- Function Block programming in pbsHMI and User defined FB by C#

- Data Logging in standard Database Like MS SQL Server

- Alarm and Events concepts and management and Logging

- Online and Historical Trending

- Scheduling and reporting concepts

- Client/Server structure in pbsHMI
